Maciej Korsan

–

IoT LEGO Millennium Falcon

a Raspberry Pi and JavaScript inside a LEGO Falcon, controlled from a phone

  • hardware,
  • IoT

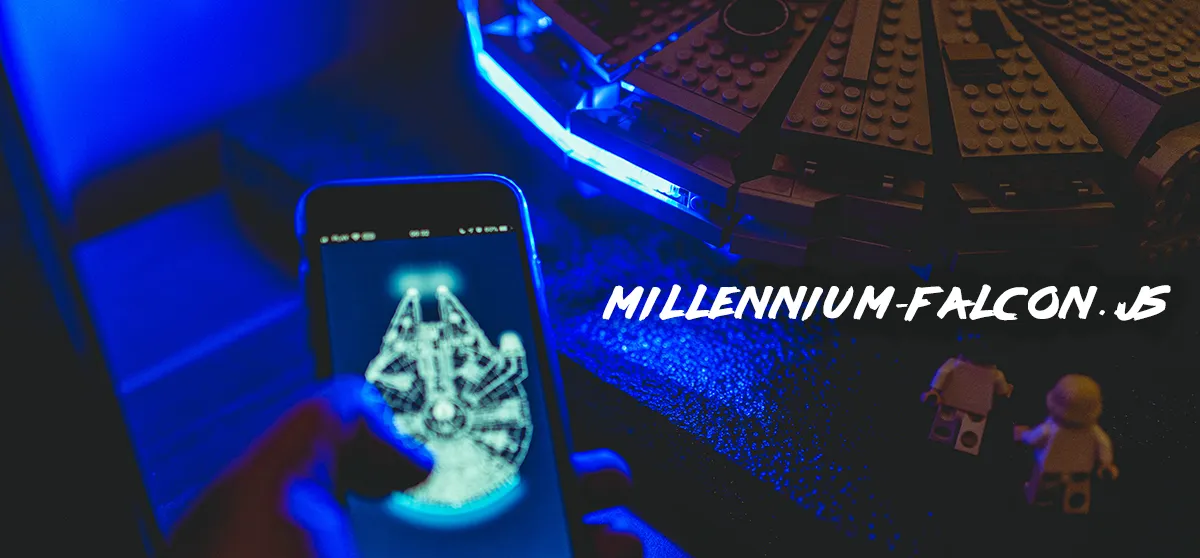

A hand holding a phone showing a blue Millennium Falcon blueprint above the LEGO model lit in blue; the words Millennium-Falcon.js beside it

I turned an ordinary LEGO Millennium Falcon into a remote-controlled ship that lights up and makes noise – using front-end technology. There’s a Raspberry Pi Zero W inside, and JavaScript runs everything, from the GPIO pins to the app on my phone. It was never meant to be perfect; it was for fun, and a guilt-free way to try technologies that were new to me.

How it works

The hyperdrive is a blue LED strip on a 12 V battery. The Raspberry Pi only puts out 5 V, so the strip is switched through a transistor – a friend doing a PhD at the Military University of Technology helped me work out the circuit. White LEDs light the cockpit, with Chewbacca and Han Solo inside, and the front of the ship. I drive the pins from Node.js with the onoff package. After three days of fighting with Bluetooth audio I gave up; the sound finally comes out of an HDMI-to-VGA adapter with a headphone jack, left over from my lecturing days.

Code goes on board through balena.io: a plain git push builds a container and updates the Falcon on its own. The ship talks to the outside world over Syncano WebSockets – calling an endpoint sends a message, and a script on the Pi switches the right lights on. The hyperdrive turns itself off after 10 seconds so it doesn’t drain the battery. The remote is a simple PWA: a Falcon blueprint in the background with invisible buttons on top, no frameworks, installed to the phone’s home screen.

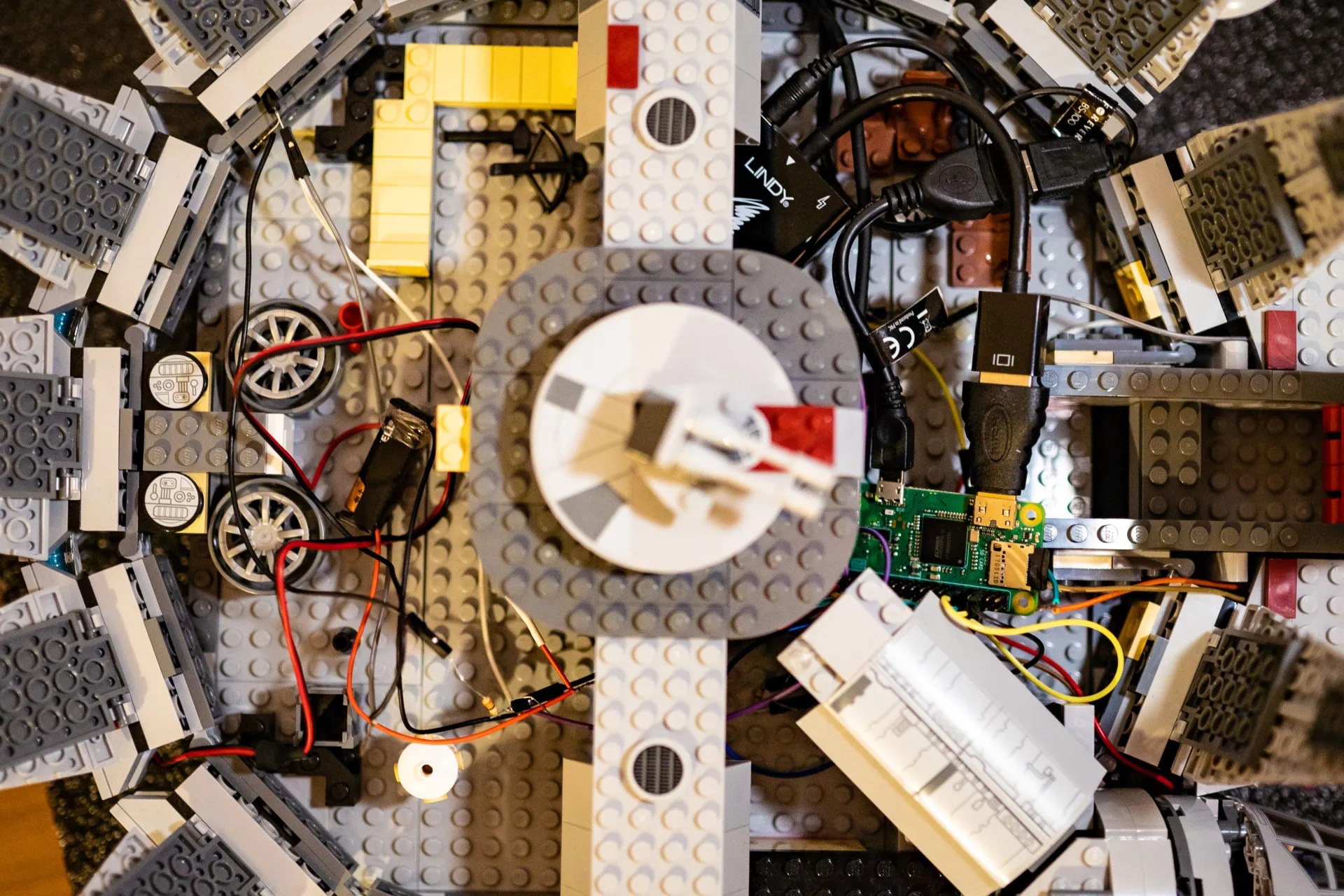

Top-down view of the opened-up LEGO Millennium Falcon: a Raspberry Pi, a tangle of wires, a battery and electronic parts inside
The wiring inside the Falcon.

Finally I added a GitHub App with a webhook: every new star on my account fires up the hyperdrive and plays an R2-D2 sound.

History

The first version only worked locally – a simple HTTP server with a PHP backend. In my “Lego ❤️ Syncano” slides from April 2018 it had already moved to Syncano and Node.js. I published the full build story, “Z JavaScriptem w nadprzestrzeń!” (Into hyperspace with JavaScript!), on devstyle.pl in May 2019, together with the code on GitHub.

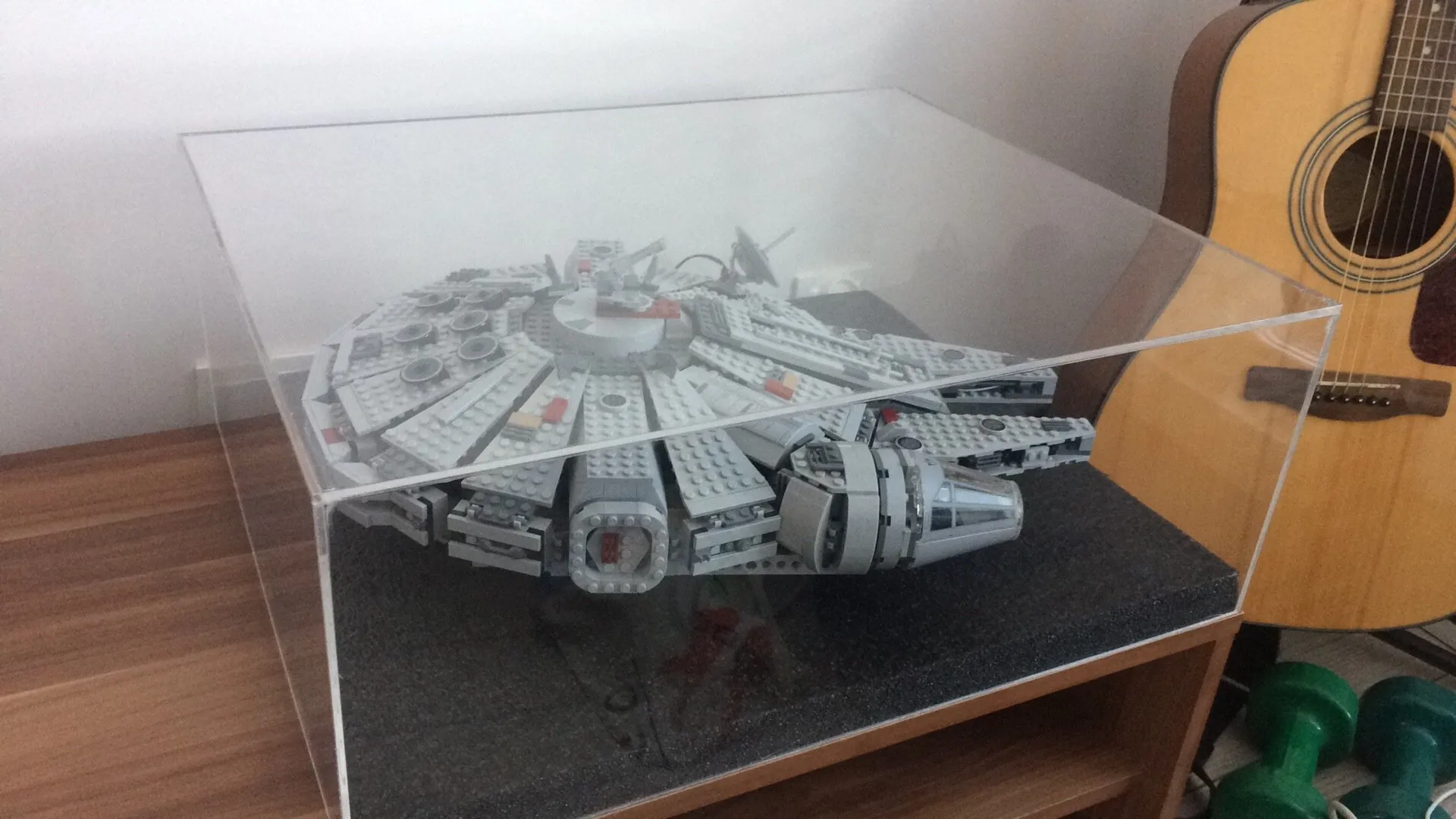

The LEGO Millennium Falcon in an acrylic display case, with an acoustic guitar next to it
The Falcon in its display case.

Sources

github.com/maciejkorsan/millenniumfalcon.js
